Electrical paper cutter machine

FOB Reference Price:Get Latest Price
1 Set/Sets (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Type:
Paper Cutting Machine
Dimension(L*W*H):
850*720*620mm
Weight:
110kgs
Condition:
New
Computerized:
No
Place of Origin:
Guangdong, China
Brand Name:
Disen
Model Number:
DS-450D+-11
Certification:
alibaba
Cutting precision:
±0.5mm
Cutting Thickness:
45mm
Name:
Electrical paper cutter machine
Max Cutting Size:
450mm
Machine Weight:
98kg
Machine Size:
850*720*620mm
Safety:
protective cover
Clamp paper:
Manual
Push paper:
Manual
Model:
450D+
Warranty:
one year
Supply Ability
Supply Ability:
150 Set/Sets per Month
Packaging & Delivery
Packaging Details
wooden case,Size:850*720*620mm,weight:110kgs
Port
Guangzhou

   Product Description



Product video:    https://www.youtube.com/watch?v=k__EtO5hHwQ

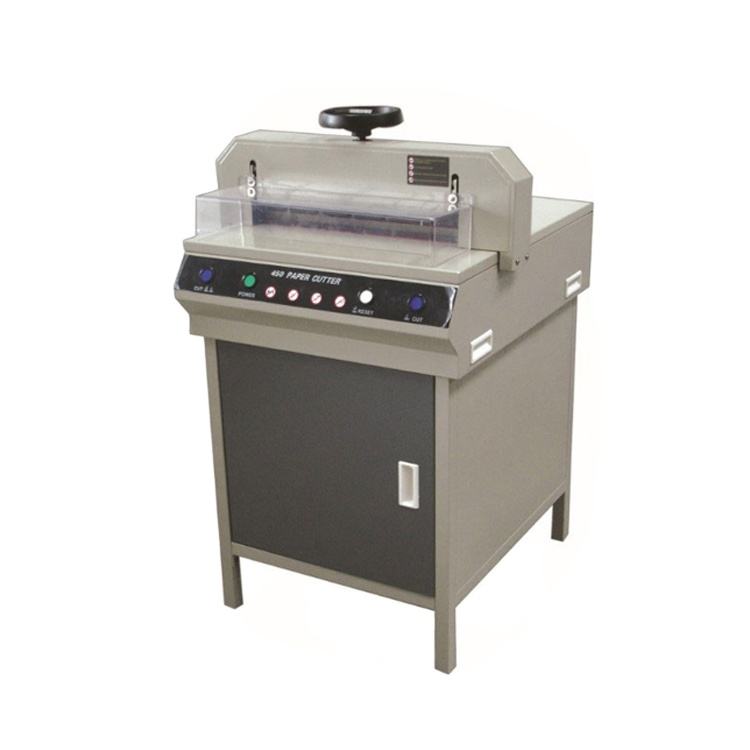

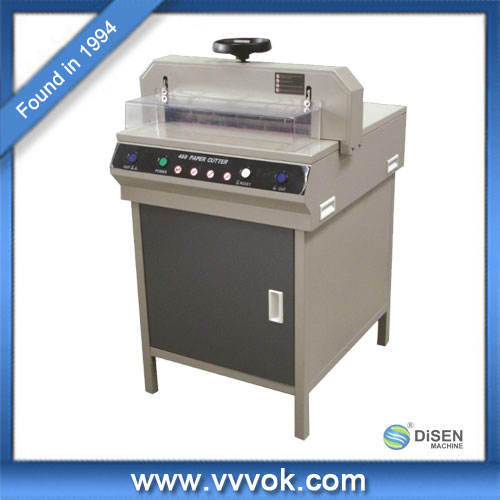

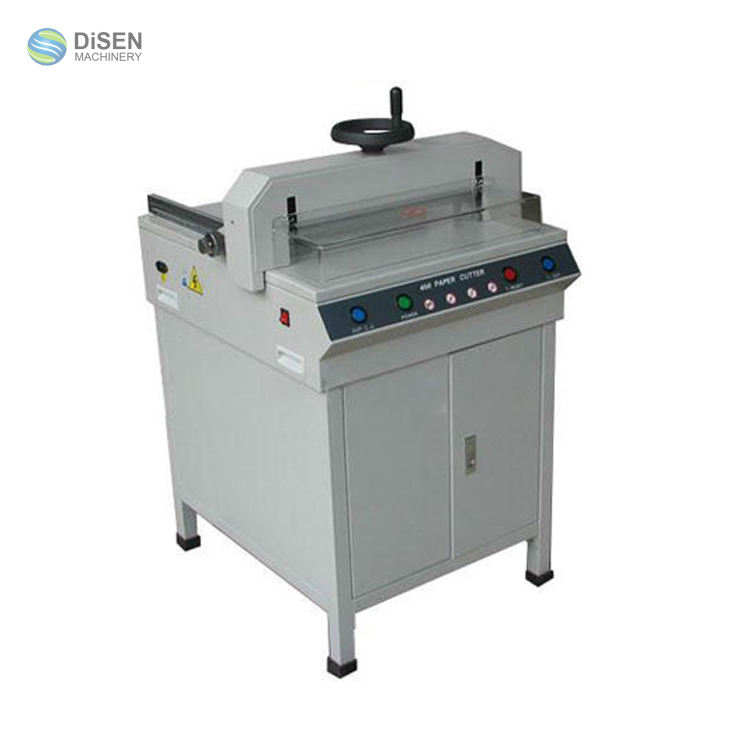

450D+ Precise paper cutter

Model450D+
Max.cutting width450mm
Max.cutting thickness45mm
Precision±0.5mm
Clamp papermanual
Push papermanual
safetyprotective cover
NW.92kgs
GW.110kgs
Packing size850*720*620mm



Electrical paper cutter machine

Heavy-duty casting mechanism
Precision-machined parts processing technique to ensure machine working

Safe guard design
Making according to CE standard to guarantee safety with front & back plastic cover protective design

Inclined blade cutting patented technology
Any paper can be cut easily with inclined blade design

Patented appearance
Simple, exquisite metal technics and removable design, being applied to graphic printing office

Optical cutting line
Infrared laser indicating line,high-visible

Numerical-control circuit for pushing
Cutting size can be set at will and accurately

Cutting Machine
CHARACTERISTICS
1.Manual spindle clamp with hand wheel
2.Front&back protection and safety guard power switch Device
3.Spn cutter withdepth curve technology device
4.Opitical cutting Line
5.Fashion able appearance design with patented
PARAMETERS
Whole machine stander manufactured in good quality
Manual spindle clamp with hand wheel
Pressing paper automatically, press then cut
Precise numerical-control circuit design, double orbit push paper device
Front & back protection and safety guard power switch
Inclined cutting technology
Spin cutter with depth curve technology device
Imported main motor with strong motive power
Opitical cutting line
Fashionable appearance design with patented





   Product Images



Rotary paper cutter for sale

Rotary paper cutter for sale

Rotary paper cutter for sale

Rotary paper cutter for sale

Rotary paper cutter for sale

Rotary paper cutter for sale





   Product Related Information



4605 Digital paper cutter

Model4605
Max.cutting width460mm
Max.cutting thickness50mm
Precision±0.3mm
Clamp paperelectric
Push paperelectric
safetyprotective cover
NW.130kgs
GW.145kgs
Packing size935*620*1235mm



4800H Hydraulic Programble Paper Cutter

Model 4800H 5208H 6700H
Max.cutting width 480mm 520MM 670mm
Max.cutting thickness 60mm 80mm 80mm
Precision ± 0.3mm ± 0.3mm ± 0.3mm
Clamp paper Hydraulic Hydraulic Hydraulic
Push paper Hydraulic Hydraulic Hydraulic
safety IR IR IR
NW. 390kgs 455kgs 480kgs
GW. 415kgs 430kgs 555kgs
Packing size 1050*970*1470mm 1120*1020*1500mm 1400*1100*1480mm



480DS Display Paper cutter

Model DS-480DS
Max.cutting width 480mm
Max.cutting thickness 48mm
Precision ±0.5mm
Clamp paper manual
Push paper manual
safety IR
NW. 115kgs
GW. 135kgs
Packing size850*720*620mm



3204A Manual Paper cutter

Model DS-3204A
Cutting width 320mm
Cutting thickness 40mm
Inclined cutting technology Yes
Clamp paper manual
Push paper manual
safety blade lock
NW. 15kgs
GW. 17kgs
Packing size 550*540*300mm




4606Z Paper cutter

Model DS-4606Z
Max.cutting width 460mm
Max.cutting thickness 60mm
Precision ±0.5mm
Clamp paper electric
Push paper manual
safety IR
NW. 116kgs
GW. 140kgs
Packing size 850*720*620mm



4700 Manual Paper cutter

Model4700
Max.cutting width470mm
Max.cutting thickness80mm
Inclined cutting technologyYes
Clamp papermanual
Push papermanual
safetyprotective cover
NW.75kgs
GW.96kgs
Packing size910*840*690mm




Electrical paper cutter machine

Electric Paper Cutters are the most efficient way to precisely cut large stacks of paper stock. Fully automatic and semi-automatic models are available. Automatic Electric Paper Cutting machines allow you to cut stacks of paper (from 50 to 1000 sheets of 20# bond) into smaller sizes. Electric paper cutting machines are also used to cut card stock.

Paper cutting machine advantage

Electric Paper Blade

Locking Back Gauge with Calibrated Crank

Solid Steel Blade Carrier

Two-hand operation for safety

Adjustable Steel Paper Guide in mm. / inches

All Metal Construction

Automatic Blade Return from any position

Blade/Knife Lock

Disc Brake for Instant Blade Stop

Solid spindle guided Paper Clamp applies variable, even vertical pressure along the Cutting Length

Easy Blade Change

External Blade Depth Adjustment

Fine Back Gauge (Back Stop) Manual Adjustments with calibrated hand crank on spindle guided Back Gauge.

Back Gauge moves in 1 mm. increments. Back Gauge accuracy is plus/minus .5mm/.019 inches

Hand Guard Shield for cutting safety on the Front and Rear Table.

Includes: 2 Keys, Power Cord, Knife Removal Sheath, Knife Removal Tool, Crank Handle and Screw, T3 and T5 Screw Drivers for changing the Blade and for Blade Micro Adjusting, 2 Knife Removal Screw Handles,Sleeve Set, Hexagonal Driver

Micro Adjustment of Blade

Resharpenable Blade

Safety Lock with key and Main Switch

Do you need paper cutters or paper trimmers? Choose from our range of paper trimmers and paper guillotines. Whatever your paper cutting requirements are there will be a paper cutting machine here to suit your needs. Whether you are looking for a home office paper trimmer that will cut a single sheet of paper or a large professional paper guillotine which is capable of trimming hundreds of sheets in one go – we have them all.

Paper Trimmer – these are the most precise type of paper cutters that allow great accuracy and cutting sheets exactly to the required dimensions. Most of the paper trimmers within our range are rotary trimmers which have their cutting blades enclosed in an easy to hold cutter head. Since their main advantage is high precision trimming without any uneven paper leftovers at the edge where it is being cut they are often use by photographers, designers, architects, etc. Rotary trimmers don’t take as many sheets at once as paper guillotines but as mentioned before they aim at precision rather than volume.

Paper Cutter – also referred to as paper guillotines are designed to precisely cut larger quantities of paper at once. Paper guillotines which are available on our site are capable of cutting between 15– 40 sheets during a single use of the cutter. The way a paper guillotine operates is similar to scissors just that instead of having two movable knives you only have one knife that is moving and the other one is stationary. Such method of cutting allows getting straight cuts which would be impossible to achieve if using scissors. Paper cutters are available for various paper sizes including the most popular sizes like A4 and A3.



Electrical paper cutter machine

1.Optimized structure design, precise production, stable preference, solid and durable;

2.Performance and sturdy for long use;

3.Adopt innovative integrated stable computer numerical control, ensure machine working reliable;

4.There is digital display indicates the size before cutting and after cutting;

5.Manual paper forward, Push button switch, both hand on work locking device, auto reset function,safety guarantee;

6.Adopt high speed steel blade, sharp and endure;

7.Adopt infrared ray safe lock and protect-cover, safety guarantee;

8.Fashionable simple design, beauty and utility;

9.Separated motor-driven paper press, press before cutting, oblique cutting, ensure the cutting precisely;

10.Fashionable and simple design.

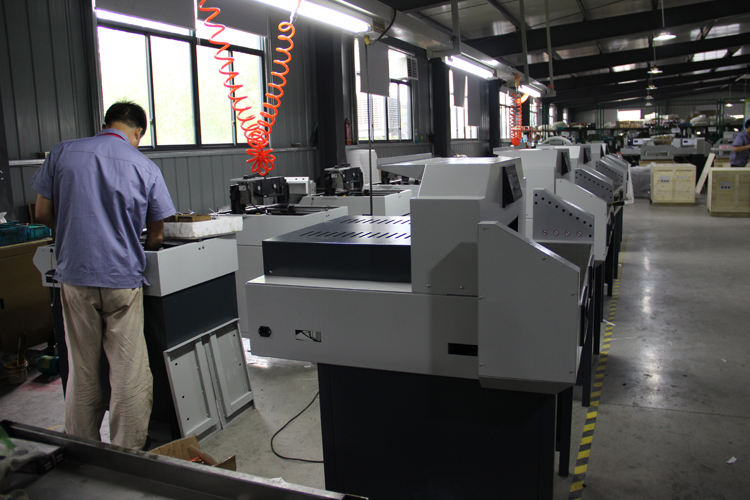

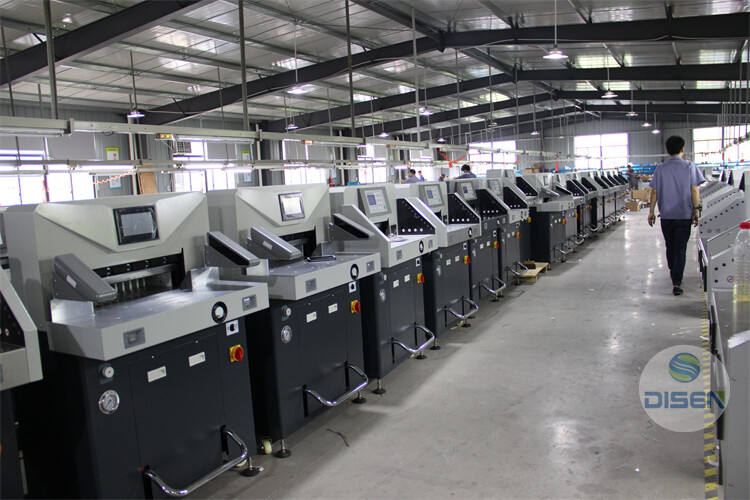

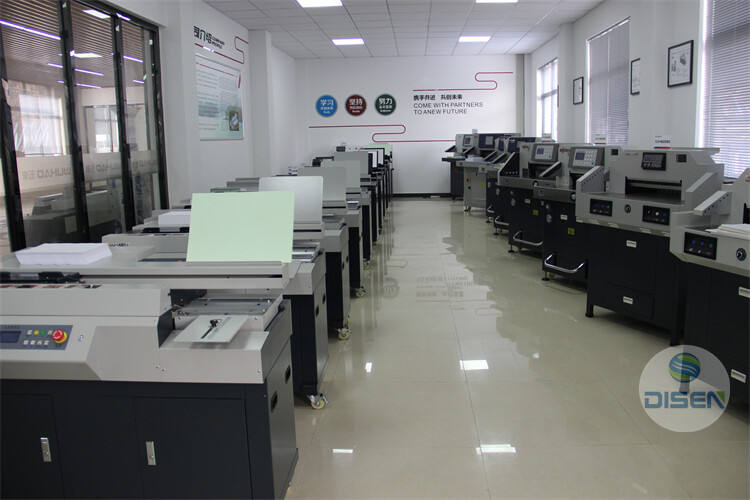

   DiSen Company Show
